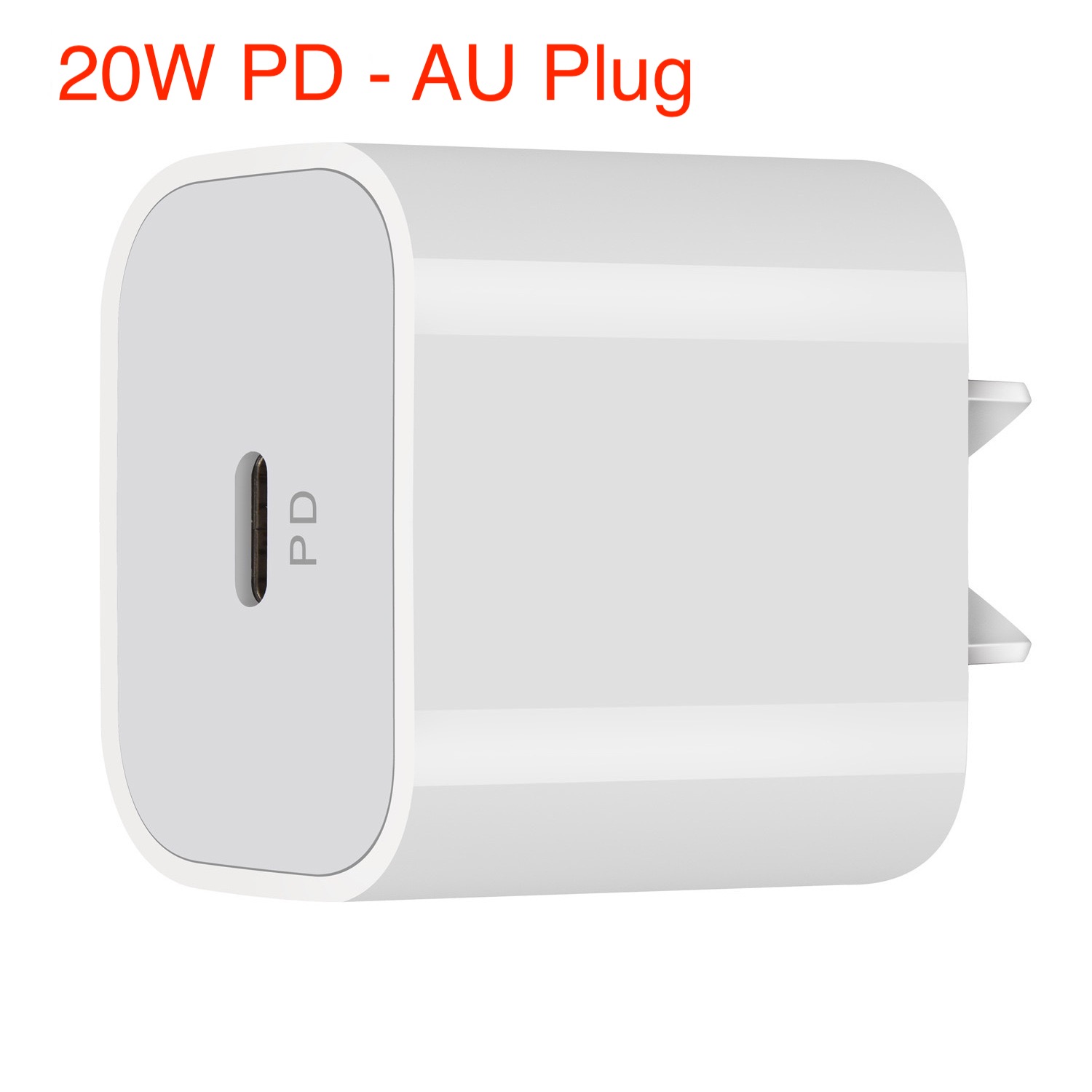

(AU Plug) 20W USB-C PD Power Adapter

Product Name: 20W USB-C PD Power Adapter-AU Plug

Product specification: EU/UK/US/AU Plug

Product color: White，black (customizable)

Dimension: 63*40*22mm

Product weight: 46.2g

Input voltage: AC 100-240V 50-60Hz

Output voltage: DC 5v3a 9v2.25a 12v1.67a

Output power: 20W

Efficiency: 85%

Voltage adjustment rate: 5%

Working temperature: 0-50 ℃

Output Ripple & noise: 80-120mVp

Output protection: short circuit protection, over voltage protection, over charge protection, overheating protection

Storage temperature: -20℃+80℃

Aging: 100% full load aging

Protection function: overload protection 105% - 150% rated power, automatic protection

Insulation resistance: input-output≥500mΩ input-housing≥ 500mΩ

Applicable products: smart phones, tablet computers, digital electronics and other devices.

Product certification: CE FCC RoHS

Product features:

1: Good safety performance and high reliability

2: The housing is made of flame retardant material, which is more safe, damp proof and dust proof.

3: Sufficient current, sufficient power, shorter charging time.

4: Ultra low no load and standby energy loss, in line with the national energy saving standards.

5: Good anti-interference performance, built-in anti-electromagnetic interference filter.

6: The input voltage range is wide, all of which are 100-240V, which meets the global standards.

7: The first stage insulation performance is good, and the high frequency transformer 100% adopts vacuum immersion.

8: Full load high temperature burning machine, 100% aging test.

9: It has the functions of over-voltage, over-current, over power and short circuit protection.

10: All materials do not contain (not beyond the specified limits) six toxic substances, cadmium, chromium, lead, mercury, PBB and PBDE used in Europe
